PUMPING SOLUTIONS
Self Priming Pump
Self Priming High Suction Pump
Centrifugal Monoblock Pump
Pressure Booster Pump
Shallow Well Jet Pump
Centrifugal Jet Pump
Open Well Horizontal / Vertical Pump
Bore Well Submersible Pump V3 / V4 / V5
Bore Well Submersible Pump V6 / V7 / V8 / V10

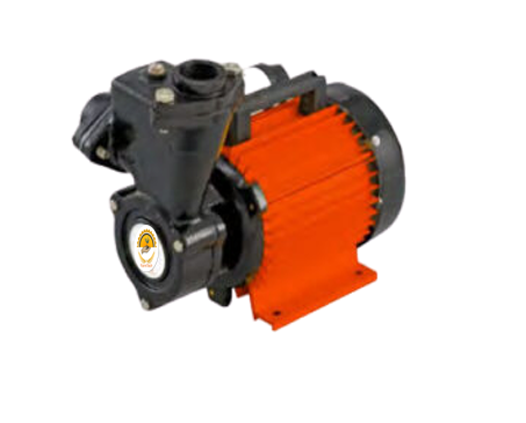

Self Priming Pump
Self Priming Pump
FarmTech® Self priming Pumps is Driven by Totally Enclosed Fan Air Cooled AC Induction Two Pole Motor, Suitable for Continuous Duty. Motor Stator is Made of Low Watt Loss Silicon Laminations Assembled Under Pressure and Rigidly Locked in the Frame.| Specifications | |
|---|---|
| Power Rating | 0.37 kw / 0.5 hp – 0.75 kw / 1 hp (220 Volts, 50hz, Single Phase AC Supply) |
| Speed (RPM) | 2880 rpm |
| Head Range in Meters | 6 – 54 |
| Insulation | Class B / F |
| Discharge Range (LPH) | 100 – 3850 |
| Liquid | Clear Water |
| Operating Temp. | 40°C |
| Pipe Size In mm | 25 x 25 |
| Materials | |
|---|---|
| Motor Body | Aluminium Extruded |
| Impeller | Forged Brass |
| Delivery Casing | Cast Iron |
| Pump Body | Cast Iron |
| Shaft | Carbon Steel |
Disclaimer: Design Specifications and Product Features are subjected to change without prior intimation as a result of the Continuous Improvement Process at FarmTech.
Self Priming High Suction Pump
Self Priming High Suction Pump
FarmTech® Self priming High suction Pumps is made out of rigid Cast Iron / Aluminum and other high quality raw materials. These are with inbuilt with Check Valve on Suction Side and there is no Need for Foot Valve.
| Specifications | |
|---|---|
| Power Rating | 0.37 kw / 0.5 hp – 0.75 kw / 1 hp (220 Volts, 50hz, Single Phase AC) supply) |
| Speed (RPM) | 2880 / 1440 |
| Head Range in Meters | 6 – 45 |
| Insulation | Class B |
| Discharge Range (LPH) | 160 – 4140 |
| Liquid | Clear Water |
| Operating Temp. | 40°C |
| Pipe Size In mm | 25 x 25 |
| Materials | |
|---|---|
| Motor Body | Cast iron |
| Impeller | Brass / Gun metal |
| Delivery Casing | Cast Iron |
| Pump Body | Cast Iron |
| Shaft | SS 410 |
Disclaimer: Design Specifications and Product Features are subjected to change without prior intimation as a result of the Continuous Improvement Process at FarmTech.
Centrifugal Monoblock Pump
Centrifugal Monoblock Pump
FarmTech® Centrifugal Monoblock Pump sets Pump Casting and Ejector unit are Designed Carefully to Give the Best Possible Hydraulic Efficiency and Suction Lift Characteristics.
| Specifications | |
|---|---|
| Power Rating | 0.37 kw / 0.5 hp – 1.5 kw / 2 hp (220 Volts, 50hz, Single Phase AC supply) |
| Speed (RPM) | 2880 |
| Head Range in Meters | 6 – 36 |
| Insulation | Class B |
| Discharge Range (LPH) | 600 – 82020 |
| Liquid | Clear Water |
| Operating Temp. | 40°C |
| Pipe Size In mm | 25 x 25 , 32 x 25 , 40 x 40 , 50 x 40 , 50 x 50 , 65 x 50 , 80 x 80 |
| Materials | |
|---|---|
| Motor Body | Cast Iron / Aluminum |
| Impeller | Cast Iron / Gun metal |
| Delivery Casing | Cast Iron |
| Pump Body | Cast Iron |
| Shaft | SS 410 |
Disclaimer: Design Specifications and Product Features are subjected to change without prior intimation as a result of the Continuous Improvement Process at FarmTech.
Pressure Booster Pump
Pressure Booster Pump
FarmTech® Pressure Booster System Maintains the Even Water Pressure in all the Outlets. When Pressure Drop to the Pre -set Level, the Pump will Start-up and Meet the Demand, When The Pressure Attained its Maximum Pre-set Pressure , the Pump will be Switched Off.
| Specifications | |
|---|---|
| Power Rating | 0.59 kw / 0.8 hp – 1.5 kw / 2 hp (220 Volts, 50hz, Single Phase AC) supply) |
| Speed (RPM) | 2880 |
| Head Range in Meters | 6 – 39 |
| Insulation | Class B |
| Discharge Range (LPH) | 1200 – 8200 |
| Liquid | Clear Water |
| Operating Temp. | 40°C |
| Pipe Size In mm | 25 x 25 |
| Materials | |
|---|---|
| Motor Body | Aluminum |
| Impeller | Stainless Steel |
| Delivery Casing | Cast Iron |
| Pump Body | Cast Iron & SS |
| Shaft | SS 410 |
Disclaimer: Design Specifications and Product Features are subjected to change without prior intimation as a result of the Continuous Improvement Process at FarmTech.
Shallow Well Jet Pump
Shallow Well Jet Pump
FarmTech® Shallow Well Jet Pumps has Got Excellent Hydraulic Performance and Higher Operating Efficiency. It Can Prime Up to 8 metres in suctions Due to FarmTech`s Superior Design Materials and Manufacturing Processes.
| Specifications | |
|---|---|
| Power Rating | 0.37 kw / 0.5 hp – 0.75 kw / 1 hp (220 Volts, 50hz, Single Phase AC) supply) |
| Speed (RPM) | 2880 rpm |
| Head Range in Meters | 6 – 33 |
| Insulation | Class B |
| Discharge Range (LPH) | 200 – 4000 |
| Liquid | Clear Water |
| Operating Temp. | 40°C |
| Pipe Size In mm | 25 x 25 |
| Materials | |
|---|---|
| Motor Body | Aluminum |
| Impeller | Stainless Steel |
| Delivery Casing | Cast Iron |
| Pump Body | Cast Iron & Steel |
| Shaft | SS 410 |
Disclaimer: Design Specifications and Product Features are subjected to change without prior intimation as a result of the Continuous Improvement Process at FarmTech.
Centrifugal Jet Pump
Centrifugal Jet Pump
FarmTech® Centrifugal Jet Pump is a Combination of Centrifugal Monoblock pump and Jet pump Assembly Designed Specially to Lift Water from Underground Resources.
| Specifications | |
|---|---|
| Power Rating | 0.75 kw / 1 hp (220 Volts, 50hz, Single Phase AC Supply) |
| Speed (RPM) | 2880 rpm |
| Head Range in Meters | 9 – 42 |
| Insulation | Class B |
| Discharge Range (LPH) | 100 – 2700 |
| Liquid | Clear Water |
| Operating Temp. | 40°C |
| Pipe Size In mm | 32 x 25 x 25 |
| Materials | |
|---|---|
| Motor Body | Cast Iron / Aluminum |
| Impeller | Cast Iron / Gun metal |
| Delivery Casing | Cast Iron |
| Pump Body | Cast Iron & Steel |
| Shaft | SS 410 |
Disclaimer: Design Specifications and Product Features are subjected to change without prior intimation as a result of the Continuous Improvement Process at FarmTech.
Open Well Horizontal / Vertical Pump
Open Well Horizontal / Vertical Pump
FarmTech® Horizontal / Vertical Open Well submersible Pump -Set are ideally Suitable for Open -well & Tank Wide Fluctuation of Water Level Occur . This Works Under Water and Rest on Bottom of Well and Tank ,Hence Suction & Priming Problem will not Arise. The Optimal Design of Impeller & Diffuser Enables Best Possible Hydraulic Efficiency.
| Specifications | |
|---|---|
| Power Rating | 0.37 kw / 0.5 HP – 7.4 kw / 10 hp (220 Volts, 50hz, Single Phase AC) supply) |
| Speed (RPM) | 2880 rpm |
| Head Range in Meters | 6 – 36 |
| Insulation | Class B |
| Discharge Range (LPM) | 33 – 1815 (2000 LPH – 108900 LPH) |
| Liquid | Clear Water |
| Operating Temp. | 40°C |
| Pipe Size In Inch | 1 x 1 , 1.5 x 1.5 , 2 x 2 , 2.5 x 2.5 , 3 x 3 , 4 x 4 |
| Materials | |
|---|---|
| Motor Body | Stainless Steel |
| Impeller | Cast Iron / SS / Nylon |
| Delivery Casing | Cast Iron |
| Pump Body | Cast Iron & Steel |
| Shaft | SS 410 |
Disclaimer: Design Specifications and Product Features are subjected to change without prior intimation as a result of the Continuous Improvement Process at FarmTech.
Bore Well Submersible Pump V3 / V4 / V5
Bore Well Submersible Pump V3 / V4 / V5
FarmTech® 3” / 4” / 5” Bore well Submersible pumps is Firmly Coupled to Submersible Electrical Motor Which Operates Submersed Beneath of Surface of Water. The Optimal Design of Impeller & Diffuser Enables Best Possible Hydraulic Efficiency. Built in Check Valve Prevents Back Flow & Reduces the Risk of Water Hammering.
| Specifications | V3 | V4 | V5 |
|---|---|---|---|
| Power Rating | 0.37 KW / 0.5 HP – 0.9 KW / 1.25 HP (Single & Three Phase AC supply) | 0.37 KW / 0.5 HP – 5.6 KW / 7.5 HP (Single & Three Phase AC supply) | 2.23 KW / 3 HP – 7.4 KW / 10 HP (Three Phase AC supply) |
| Speed (RPM) | 2880 | ||
| Head Range in Meters | 16 – 89 | 14 – 350 | 5 – 300 |
| Maximum Outer Diameter | 76 | 100 | 115 & 125 |
| Discharge Range (LPM) | 20 – 55 | 25 – 260 | 40 – 675 |
| Liquid | Clear Water | ||
| Operating Temp | 40°C | ||
| Pipe Size In Inch | 1 | 1.25 , 1.5 & 2 | 1.5 , 2 , 2.5 & 3 |
| Materials | |
|---|---|
| Stator Body | Stainless Steel |
| Impeller | Noryl / SS |
| Bearing | Leaded Bronze in water filled |
| Shaft | SS 410 |
| Thrust Bearing Set | Carbon steel & SS |
Disclaimer: Design Specifications and Product Features are subjected to change without prior intimation as a result of the Continuous Improvement Process at FarmTech.
Bore Well Submersible Pump V6 / V7 / V8 / V10
Bore Well Submersible Pump V6 / V7 / V8 / V10
FarmTech® 6” / 7” / 8” / 10” Bore well Submersible pumps set Powered by Water Filled Rewind able Submersible Motor Which is Suitable for continuous Duty . The Stator is wound with Special Water proof Synthetic Film / PVC Insulated Copper Winding Wires and Made up of Low Watt Loss silicon Laminations ,Assembled Under Under Pressure and Rigidly Locked in the Stainless Steel Stator Shell.
| Specifications | V6 | V7 | V8 | V10 |
|---|---|---|---|---|
| Power Rating | 2.23 KW / 3 HP – 18.64 KW / 25 HP (Three Phase AC supply) | 2.23 KW / 3 HP – 37.2 KW / 50HP (Three Phase AC supply) | 4.5 KW / 6 HP – 93.2 KW / 125 HP (Three Phase AC supply) | 14.9 Kw / 20 HP – 111.8 KW / 150 HP (Three Phase AC supply) |
| Speed (RPM) | 2880 | |||
| Head Range in Meters | 15 – 480 | 15 – 100 | 17 – 280 | 19 – 368 |
| Maximum Outer Diameter | 130 & 142 | 159 | 185 | 225 |
| Discharge Range (LPM) | 10 – 1100 | 660 – 1680 | 440 – 1970 | 960 – 4350 |
| Liquid | Clear Water | |||
| Operating Temp. | 40°C | |||
| Pipe Size In Inch | 2 , 2.5 & 3 | 4 | 3 , 4 & 5 | 5 & 6 |
| Materials | |
|---|---|
| Stator Body | Stainless Steel |
| Impeller | Noryl / SS |
| Bearing | Leaded Bronze in Water Filled |
| Shaft | SS 410 |
| Thrust Bearing Set | Carbon Steel & SS |
Disclaimer: Design Specifications and Product Features are subjected to change without prior intimation as a result of the Continuous Improvement Process at FarmTech.
